摘要
肠促胰岛素分泌肽胰高血糖素样肽-1(GLP-1)和葡萄糖依赖性促胰岛素释放多肽(GIP)能通过血糖依赖机制促进胰岛素分泌,其特异性结合受体GLP-1R和GIPR是治疗2型糖尿病的良好靶点。以本实验室前期设计的口服降糖多肽OHP2为基础,设计了可口服的新型降糖多肽——ODA。ODA较OHP2的亲脂性提高,在Caco-2细胞中的胞吞能力及跨细胞转运能力更强。ODA保留了OHP2对GLP-1R的激活能力,增强了与GIPR的结合能力。口服低剂量ODA(0.53 mg/kg)即可达到与口服OHP2(1.06 mg/kg)相当的降糖水平。研究结果显示,ODA是治疗2型糖尿病极具潜力的口服药物。
GLP-1由小肠L细胞分泌产生,经GLP-1R介导,以葡萄糖依赖的方式作用于胰岛β细胞,促进胰岛素分
在目前的糖尿病治疗中,肠促肽类降糖药物占据了重要地位,其中以GLP-1R激动剂为
本实验室前期基于GLP-1R激动剂Exendin-4的结构特征,利用计算机辅助设计得到了具有降糖活性的口服GLP-1R激动剂OHP
DMEM高糖培养基、DMEM/F-12培养基(美国Gibco公司);胰蛋白酶、G418(美国Sigma-Aldrich公司);胎牛血清(FBS,美国CLARK Bioscience公司);Exendin-4(上海吉尔生化有限公司);OHP2(南京金斯瑞生物科技有限公司);ODA(合肥森尔生物科技有限公司);异硫氰酸荧光素(异构体Ⅰ,FITC,上海阿拉丁生化科技股份有限公司);Pierce BCA法蛋白测定试剂盒(美国Thermo Scientific公司);牛血清白蛋白(BSA,广州赛国生物科技有限责任公司);氨苄青霉素、链霉素、潮霉素(上海生工生物工程有限公司);Steady-Gl
基于OHP2的结构,引入GIP 活性位点,同时OHP2耐酶解位点保持稳定,得到增强GIP激动活性的ODA序列(由合肥森尔生物科技合成)。从RCSB PDB蛋白质数据库(https://www.rcsb.org)获取Exendin-4和GLP-1受体胞外结构域的PDB文件(5OTT)、GIP和GIP受体胞外结构域的PDB文件(2QKH),利用MOE(Molecular Operating Environment)分子操作系统和Rosetta Design在线设计服务系统(http://rosettadesign.med.unc.edu)进行亲和力打分计算。
使用去离子水溶解样品至0.5 mg/mL,用圆二色光谱仪Jasco J-810,在室温下以1 nm分辨率,50 nm/min的扫描速度在190 ~ 250 nm范围内对样品进行检测。
利用蛋白质结构服务器SWISS-MODEL(http://swissmodel.expasy.org)进行同源建模,ODA和OHP2均以Exendin-4为模板序列,选择全球性模型质量估测(GMQE)值最高的建模结果。
细胞铺板:Caco-2细胞密度为每毫升1 × 1
细胞铺板:Caco-2细胞密度为每毫升1 × 1
细胞培养:使用含10%胎牛血清、潮霉素B、G418的DMEM/F12培养基培养A11A细胞。细胞铺板:A11A细胞密度为每毫升2 × 1
靶标分子预处理:从RCSB PDB蛋白质数据库(https://www.rcsb.org)下载GIP和GIP受体胞外结构域的PDB文件(2QKH),选择Quick Prepare对分子进行加氢去水并赋予电荷,修正PDB结构缺陷。定义活性位点(site)以确定配体分子结合部位。配体分子预处理:通过MOE同源建模获得配体分子的PDB文件,加氢去水并赋予电荷。分子对接:选择蛋白-蛋白对接以半柔性对接方法计算结果。
3%碳酸氢钠溶液,Exendin-4溶液(0.02 mg/mL),葡萄糖溶液(0.2 g/mL),OHP2溶液(0.424 mg/mL),ODA溶液(0.848 mg/mL,0.424 mg/mL,0.212 mg/mL)。
基于GLP-1(HAEGTFTSDVSSYLEGQAAKEFIAWLVKGRG)、GIP(YAEGTFISDYSIAMDKIHQQDFVNWLLAQKGKKNDWKHNITQ)、Exendin-4(HGEGTFTSDLSKQMEEEAVRLFIEWLKNGGPSSGAPPPS)和OHP2(HGEGTFTSDLSSQMEEEAVKEFIEWLVNGGPSSGAPPPSC)的分子结构,在保留OHP2良好的抗酶解活性以及口服GLP-1R激动活性的前提下,通过进一步引入GIP的活性位点,本实验设计了一条新型口服降糖多肽——ODA。通过Rosetta Design评估其对GLP-1和GIP两个受体的亲和力,亲和力强度与打分绝对值呈正相关。打分结果显示,与OHP2相比,ODA保留了GLP结合能力,同时提高了GIP受体亲和力。(
Peptides | Score | |
---|---|---|
GLP-1R | GIPR | |
Exendin-4 | -21.6 | N/A |
GIP (1-42) | N/A | -16.8 |
OHP2 | -21.6 | -15.3 |
ODA | -22.5 | -15.8 |
N/A: Not applicable; OHP2: Oral hypoglycemic peptide 2; ODA: Oral dual agonist
为了得到ODA的二级结构信息,本实验对ODA的CD谱进行分析。如

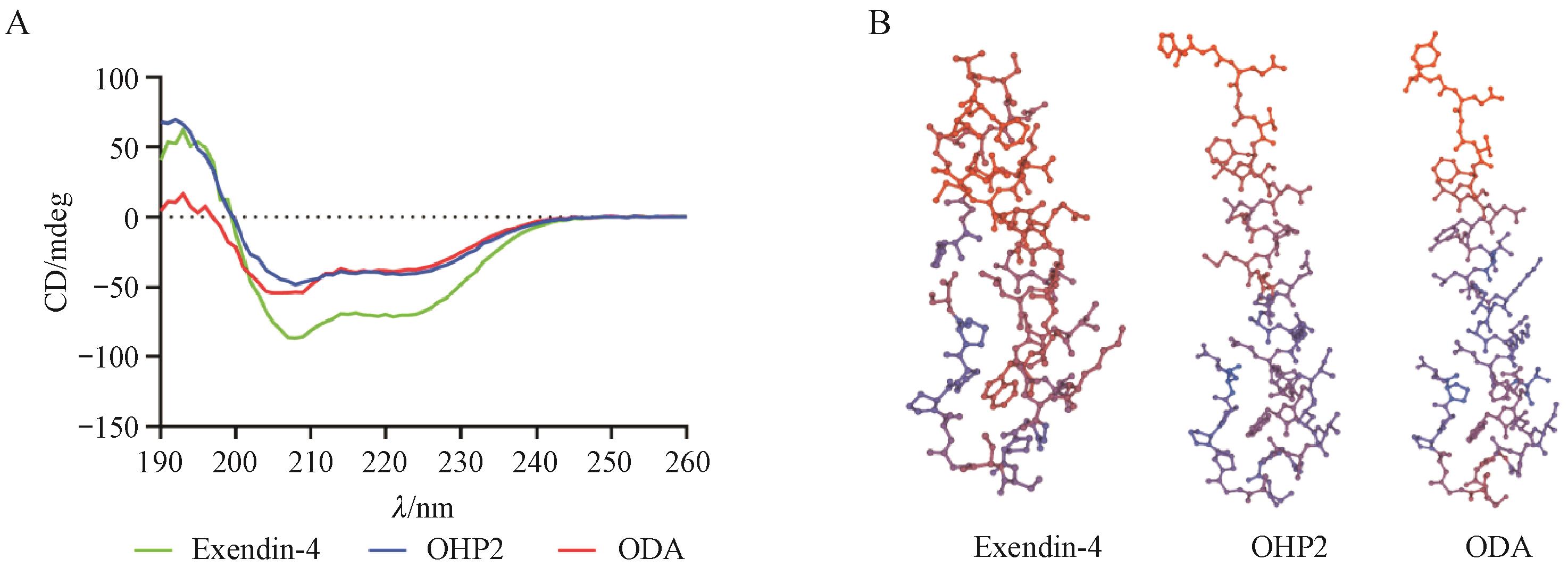

Figure 1 Determination of Exendin-4, OHP2 and ODA
A: Analysis of the secondary structure of ODA by CD spectroscopy; B: Simulation of the tertiary structure of ODA based on SWISS-MODEL
本实验通过SWISS-MODEL模拟预测ODA的三级结构,由于序列的同源相似性,ODA和OHP2的三级结构模拟均以Exendin-4为模板序列。Exendin-4,OHP2和ODA的GMQE分别为0.71,0.73和0.68。如
为了评价ODA的胞吞能力,对ODA进行了流式细胞术和荧光酶标仪法分析。如

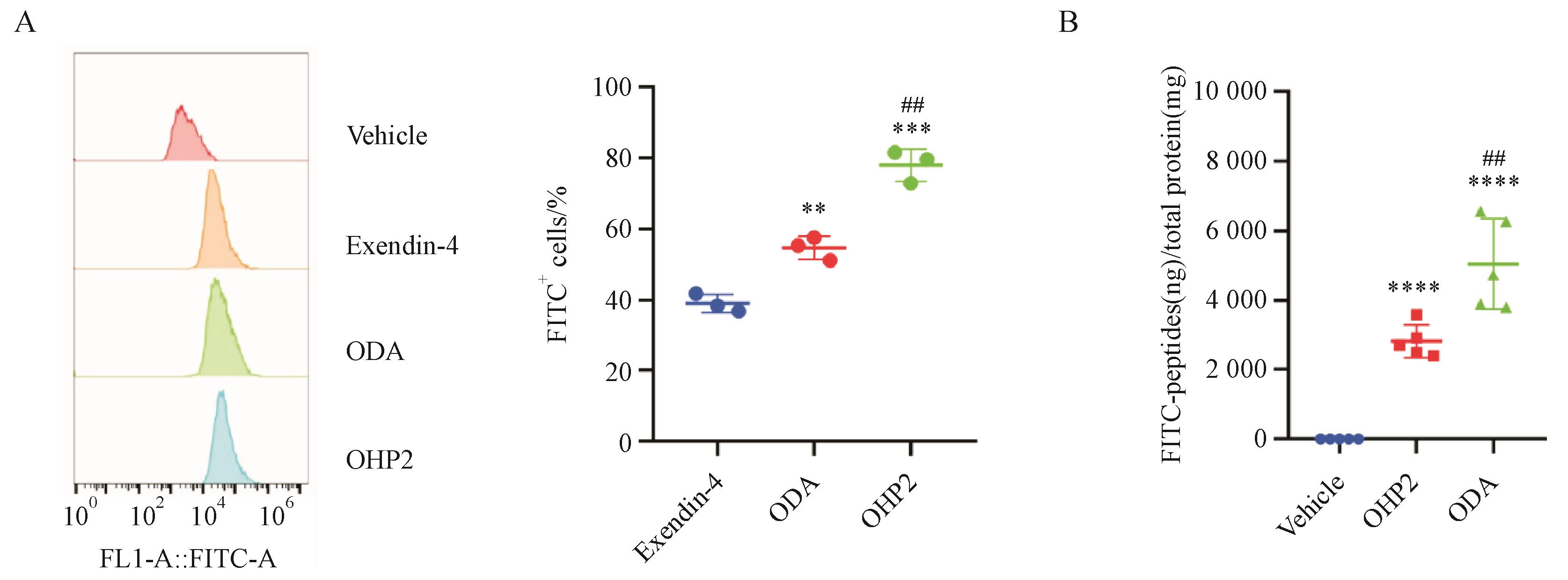

Figure 2 Endocytosis of Exendin-4, OHP2 and ODA in Caco-2 cells
A: Percentages of FIT
本实验通过Transwell法考察ODA在单层细胞模型上的跨膜转运水平。结果如

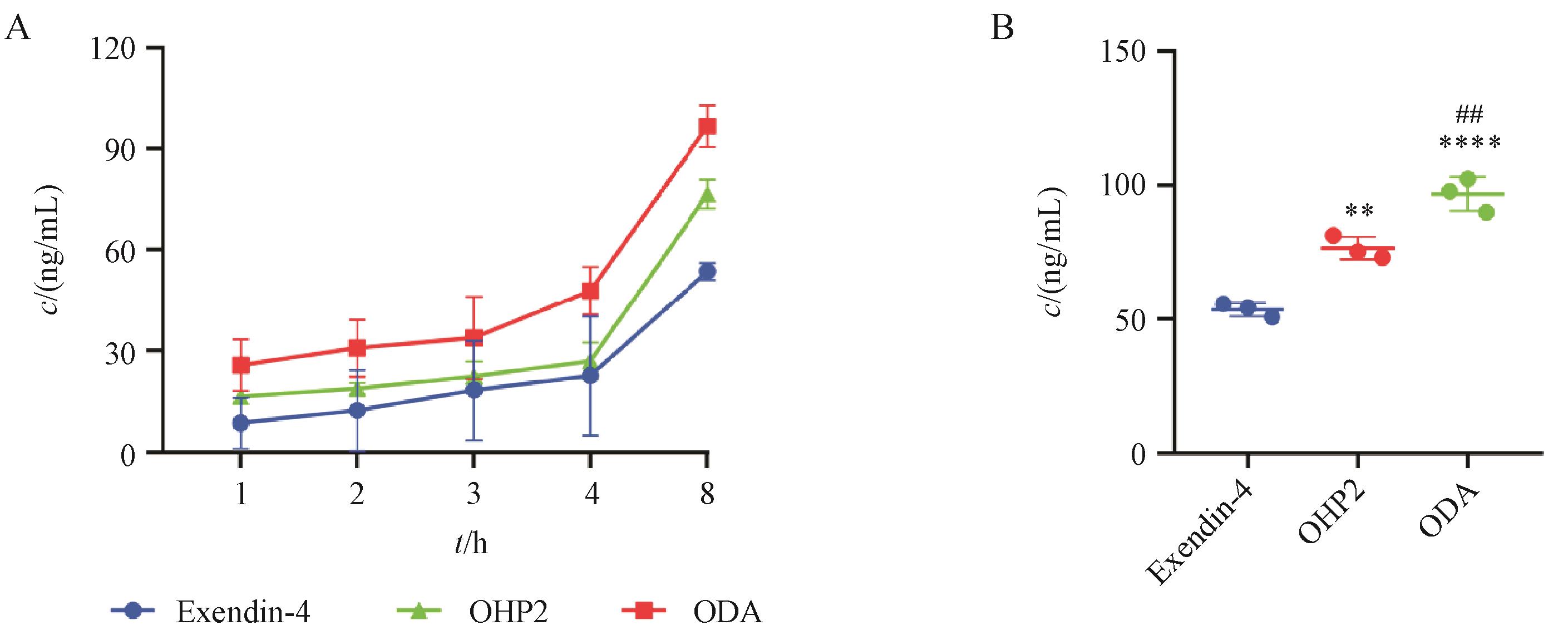

Figure 3 Transcytosis of Exendin-4, OHP2 and ODA in Caco-2 cells ()
A: Concentration-time profiles of FITC-labelled drugs at the basolateral side of the Transwell model during 8 hours incubation; B: Concentration of FITC-labelled drugs at the basolateral side of Transwell model in the 8th hour
本实验采用荧光素酶报告基因法评估了ODA对GLP-1R的激活能力,结果如

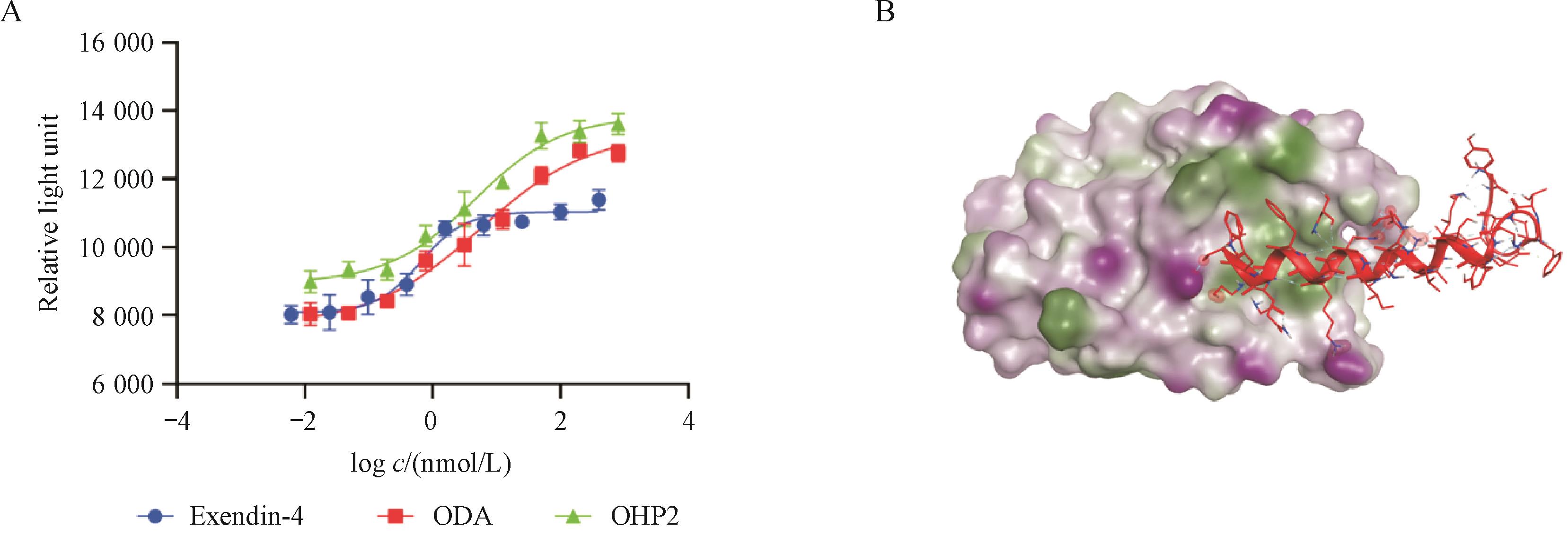

Figure 4 ODA binding ability to GLP-1R and GIPR in vitro
A: Evaluation of the ability of Exendin-4, OHP2 and ODA to activate GLP-1R by A11A cellular luciferase reporter gene assays (); B: Binding of ODA to GIPR, simulated by MOE molecular docking
选取健康C57BL/6J小鼠,通过腹腔注射葡萄糖耐量试验(IPGTT)考察口服不同剂量ODA对血糖的控制作用,以皮下注射Exendin-4组为阳性对照,ODA单次口服给药的糖耐量试验结果如

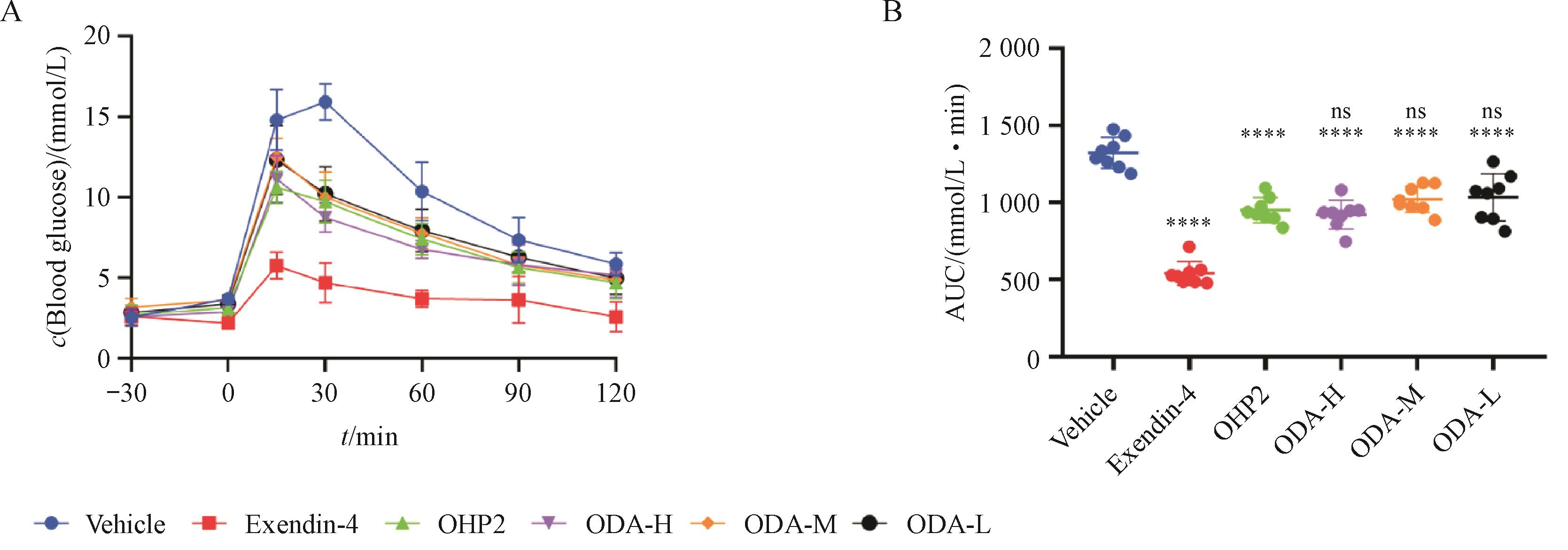

Figure 5 IPGTT of ODA in healthy mice ()
A: Fasting blood glucose versus time curve of IPGTT in healthy mice with Exendin-4 (sc, 0.10 mg/kg), OHP2 (ig, 1.06 mg/kg), ODA-H (ig, 2.12 mg/kg), ODA-M (ig, 1.06 mg/kg) and ODA-L (ig, 0.53 mg/kg) respectively; B: The area under the glucose levels curve (AUC) of IPGTT
口服索马鲁肽是目前市场上唯一一款可口服的GLP-1R激动剂,依赖促吸收剂N-[8-(2-羟基苯甲酰基)-氨基]辛酸钠(SNAC)才能实现口服吸收。SNAC可在胃部升高局部区域的pH,通过短期局部缓冲作用保护索马鲁肽防止胃蛋白酶的降
综合代谢性疾病如肥胖和糖尿病等通常具有异质性和并发性等特点,单一靶点药物治疗有一定局限
综上所述,本研究设计得到的口服ODA保留了OHP2对GLP-1R的激活能力,增强了与GIPR的结合能力,从而服用小剂量ODA即可达到降糖疗效。此外,简单的分子结构不仅更易于工业化生产,还能避免过度修饰带来的生物安全隐患。未来,口服ODA将为糖尿病患者提供更安全、更便利、更有效的用药选择。
References
Festa A, Haffner SM, Wagenknecht LE, et al. Longitudinal decline of β-cell function: comparison of a direct method vs a fasting surrogate measure: the insulin resistance atherosclerosis study[J]. J Clin Endocrinol Metab, 2013, 98(10): 4152-4159. [百度学术]
Baggio LL, Drucker DJ. Biology of incretins: GLP-1 and GIP[J]. Gastroenterology, 2007, 132(6): 2131-2157. [百度学术]
Cariou B. Harnessing the incretin system beyond glucose control: potential cardiovascular benefits of GLP-1 receptor agonists in type 2 diabetes[J]. Diabetes Metab, 2012, 38(4): 298-308. [百度学术]
Ip W, Shao WJ, Chiang YT,et al. GLP-1-derived nonapeptide GLP-1(28-36)amide represses hepatic gluconeogenic gene expression and improves pyruvate tolerance in high-fat diet-fed mice[J]. Am J Physiol Endocrinol Metab, 2013, 305(11): E1348-E1358. [百度学术]
Sisley S, Gutierrez-Aguilar R, Scott M,et al. Neuronal GLP1R mediates liraglutide’s anorectic but not glucose-lowering effect[J]. J Clin Invest, 2014, 124(6): 2456-2463. [百度学术]
Trahair LG, Horowitz M, Hausken T, et al. Effects of exogenous glucagon-like peptide-1 on the blood pressure, heart rate, mesenteric blood flow, and glycemic responses to intraduodenal glucose in healthy older subjects[J]. J Clin Endocrinol Metab, 2014, 99(12): E2628-E2634. [百度学术]
Burmeister MA, Ayala JE, Smouse H,et al. The hypothalamic glucagon-like peptide 1 receptor is sufficient but not necessary for the regulation of energy balance and glucose homeostasis in mice[J]. Diabetes, 2017, 66(2): 372-384. [百度学术]
Inagaki N, Seino Y, Takeda J, et al. Gastric inhibitory polypeptide: structure and chromosomal localization of the human gene[J]. Mol Endocrinol, 1989, 3(6): 1014-1021. [百度学术]
Christensen M, Vedtofte L, Holst JJ, et al. Glucose-dependent insulinotropic polypeptide: a bifunctional glucose-dependent regulator of glucagon and insulin secretion in humans[J]. Diabetes, 2011, 60(12): 3103-3109. [百度学术]
Gault VA, Flatt PR, O’Harte FPM. Glucose-dependent insulinotropic polypeptide analogues and their therapeutic potential for the treatment of obesity-diabetes[J]. BiochemBiophys Res Commun, 2003, 308(2): 207-213. [百度学术]
Kim SJ, Nian CL, Karunakaran S, et al. GIP-overexpressing mice demonstrate reduced diet-induced obesity and steatosis, and improved glucose homeostasis[J]. PLoS One, 2012, 7(7): e40156. [百度学术]
Martin CMA, Irwin N, Flatt PR, et al. A novel acylated form of (d-Ala(2)) GIP with improved antidiabetic potential, lacking effect on body fat stores[J]. BiochimBiophys Acta, 2013, 1830(6): 3407-3413. [百度学术]
Holst JJ. The incretin system in healthy humans: the role of GIP and GLP-1[J]. Metabolism, 2019, 96: 46-55. [百度学术]
Nauck MA, Meier JJ. The incretin effect in healthy individuals and those with type 2 diabetes: physiology, pathophysiology, and response to therapeutic interventions[J]. Lancet Diabetes Endocrinol, 2016, 4(6): 525-536. [百度学术]
Wu YX, Tian H, Gao XD. Research progress of drugs for treatment of diabetes based on incretin[J]. Pharm Biotechnol (药物生物技术), 2022, 29(6): 624-628. [百度学术]
Knerr PJ, Mowery SA, Finan B, et al. Selection and progression of unimolecular agonists at the GIP, GLP-1, and glucagon receptors as drug candidates[J]. Peptides, 2020, 125: 170225. [百度学术]
Jastreboff AM, Aronne LJ, Ahmad NN, et al. Tirzepatide once weekly for the treatment of obesity[J]. N Engl J Med, 2022, 387(3): 205-216. [百度学术]
Dimitrios P, Christodoulos P, Michael D. Tirzepatide versus semaglutide once weekly in type 2 diabetes[J]. N Engl J Med, 2022, 386(7): e17. [百度学术]
Aroda VR. A review of GLP-1 receptor agonists: evolution and advancement, through the lens of randomised controlled trials[J]. Diabetes Obes Metab, 2018, 20(Suppl 1): 22-33. [百度学术]
Overgaard RV, Navarria A, Ingwersen SH, et al. Clinical pharmacokinetics of oral semaglutide: analyses of data from clinical pharmacology trials[J]. Clin Pharmacokinet, 2021, 60(10): 1335-1348. [百度学术]
Sai WB, Tian H, Yang KM, et al. Systematic design of trypsin cleavage site mutated Exendin4-cysteine 1, an orally bioavailable glucagon-like peptide-1 receptor agonist[J]. Int J Mol Sci, 2017, 18(3): 578. [百度学术]
Lu WS, Tian H, Qian P, et al. An orally available hypoglycaemic peptide taken up by caveolae transcytosis displays improved hypoglycaemic effects and body weight control in db/db mice[J]. Br J Pharmacol, 2020, 177(15): 3473-3488. [百度学术]
Iftikhar M, Iftikhar A, Zhang HJ, et al. Transport, metabolism and remedial potential of functional food extracts (FFEs) in Caco-2 cells monolayer: a review[J]. Food Res Int, 2020, 136: 109240. [百度学术]
Buckley ST, Bækdal TA, Vegge A, et al. Transcellular stomach absorption of a derivatized glucagon-like peptide-1 receptor agonist[J]. Sci Transl Med, 2018, 10(467): eaar7047. [百度学术]
Brayden DJ, Gleeson J, Walsh EG. A head-to-head multi-parametric high content analysis of a series of medium chain fatty acid intestinal permeation enhancers in Caco-2 cells[J]. Eur J Pharm Biopharm, 2014, 88(3): 830-839. [百度学术]
Twarog C, Fattah S, Heade J, et al. Intestinal permeation enhancers for oral delivery of macromolecules: a comparison between salcaprozate sodium (SNAC) and sodium caprate (C10)[J]. Pharmaceutics, 2019, 11(2): 78. [百度学术]
Finan B, Clemmensen C, Müller TD. Emerging opportunities for the treatment of metabolic diseases: glucagon-like peptide-1 based multi-agonists[J]. Mol Cell Endocrinol, 2015, 418: 42-54. [百度学术]
