Design, synthesis and biological activity evaluation of water-soluble borneol phosphate prodrug
-
摘要:
对冰片进行结构优化,以改善冰片的溶解性,促进其在脑卒中治疗方面的进一步应用。利用磷酸酯修饰原理,设计并合成冰片前药BP-3。使用蒸发光散射检测器 (ELSD) 测定BP-3的溶解性,在小鼠血浆中测试原药释放的程度与速度,并在短暂性大脑中动脉闭塞 (tMCAO) 小鼠模型中评估BP-3的神经保护作用。结果显示,BP-3在20 mg/mL时可以完全溶解于生理盐水;在小鼠血浆中,2 h内释放约40%的冰片;在tMCAO小鼠模型中,TTC染色结果显示BP-3可以有效减少梗死面积;尼氏染色结果表明,BP-3可以改善神经元损伤;握力和抓力测试结果阐明,BP-3可以减少损伤带来的运动能力降低;转棒测试结果证明,BP-3可以促进小鼠运动能力的恢复。BP-3具有良好的水溶性、适宜的原药释放速率以及优异的神经保护作用,具备广阔的药物开发前景。

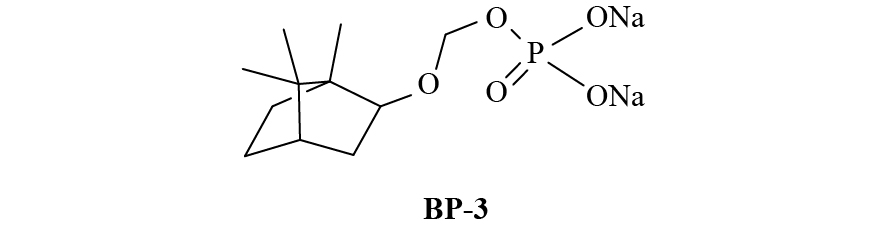

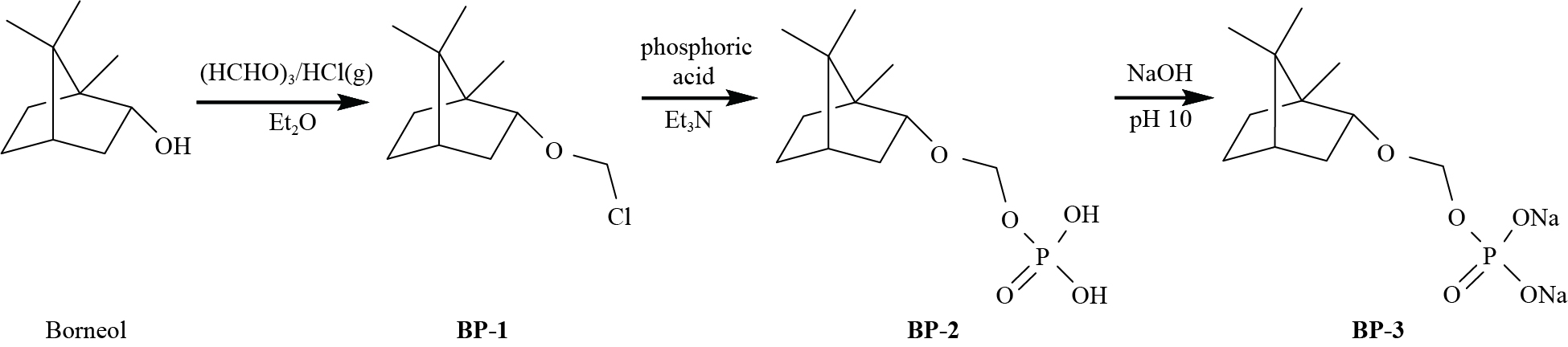

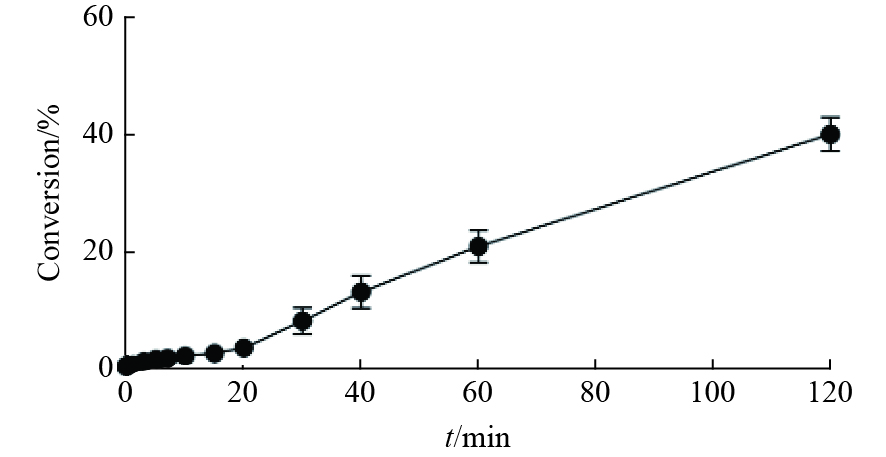

Abstract:In this study, structural optimization of borneol was carried out to improve their solubility and promote their further application in stroke therapy. BP-3, a prodrug of borneol, was designed and synthesized based on the principle of phosphate modification. The solubility of BP-3 was determined by evaporative light scattering detector (ELSD), and the degree and speed of drug release were tested in mouse plasma, and the neuroprotective effect of BP-3 was evaluated in mouse model of transient middle cerebral artery occlusion (tMCAO). According to the results, BP-3 was completely soluble in saline at 20 mg/mL; in mouse plasma, approximately 40% of the borneol were released within 2 h; in the tMCAO mouse model, TTC staining showed that BP-3 was effective in reducing the infarct area; Nissl staining showed that BP-3 ameliorated the neuronal injury; the grip and grasping strength tests elucidated that BP-3 reduced the damage of sports ability caused by injury; and the rotating rod test proved that BP-3 could promote the recovery of motor ability in mice. BP-3 has good water solubility, suitable drug release rate and excellent neuroprotective effects, and has broad prospects for drug development.
-
Keywords:
- borneol /
- phosphate /
- ischemic stroke /
- improved water solubility
-
-

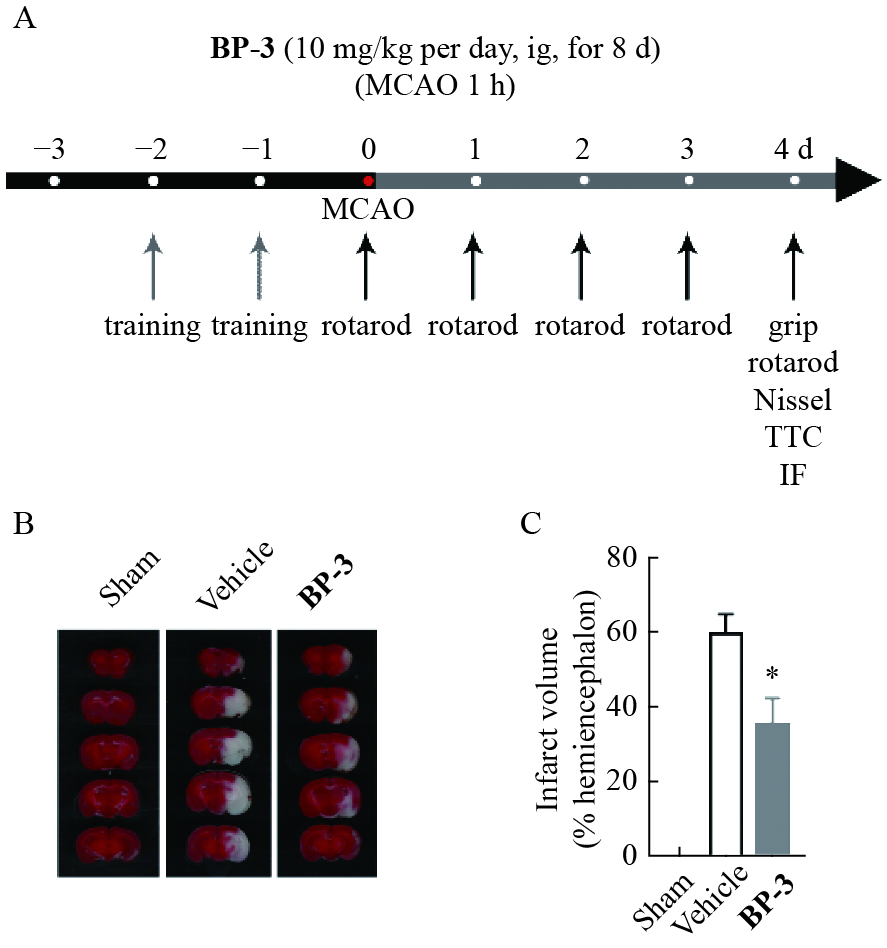

Figure 4. Continuous administration of ice phosphate in the mice model of transient middle cerebral artery occlusion (tMCAO) ($ \bar{x} $± s, n = 6-10)
A: Schematic diagram of BP-3 administration in the tMCAO/R mouse model; B: Representative map of brain TTC staining in mice; C: Statistical analysis of brain infarct areas in mice *P < 0.05 vs vehicle group

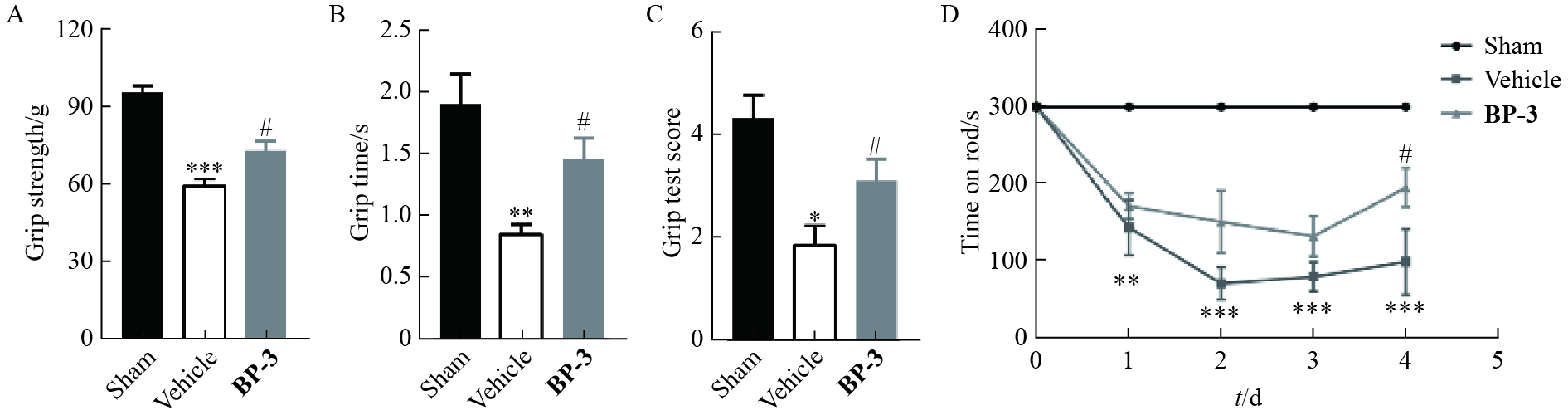

Figure 6. BP-3 improved the motor ability of the mice model of tMCAO ($ \bar{x} $± s, n = 6-10)
A: Statistical analysis of grip strength ; B: Statistical analysis of residence time of mice on the swivel bar; C: Statistical analysis of grip strength test of mice; D: Statistical analysis of residence time of mice on the swivel bar#P<0.05 vs sham group;*P<0.05,**P<0.001,***P<0.001 vs vehicle group
-
[1] Wu SM, Wu B, Liu M, et al. Stroke in China: advances and challenges in epidemiology, prevention, and management[J]. Lancet Neurol, 2019, 18(4): 394-405.
[2] Xu J, Wang AX, Meng X, et al. Edaravone dexborneol versus edaravone alone for the treatment of acute ischemic stroke: a phase Ⅲ, randomized, double-blind, comparative trial[J]. Stroke, 2021, 52(3): 772-780.
[3] Yu B, Yao Y, Zhang XF, et al. Synergic neuroprotection between Ligusticum chuanxiong hort and borneol against ischemic stroke by neurogenesis via modulating reactive astrogliosis and maintaining the blood-brain barrier[J]. Front Pharmacol, 2021, 12: 666790.
[4] Xu J, Wang YL, Wang AX, et al. Safety and efficacy of Edaravone Dexborneol versus edaravone for patients with acute ischaemic stroke: a phase Ⅱ, multicentre, randomised, double-blind, multiple-dose, active-controlled clinical trial[J]. Stroke Vasc Neurol, 2019, 4(3): 109-114.
[5] Ji X, Wang J, Zhang L, et al. Application of phosphates and phosphonates prodrugs in drug research and development[J]. Acta Pharm Sin, 2013, 48(5): 621-634.
[6] Li ZL, Zheng ZJ, Li XD, et al. Study on the effect of borneol on scutellarin permeabilization in vitro blood-retinal barrier[J]. Mod Tradit Chin Med Mater Med World Sci Technol(世界科学技术 中医药现代化), 2022, 24(11): 4260-4268. [7] Zhang SS, Asghar S, Yang L, et al. Borneol and poly (ethylene glycol) dual modified BSA nanoparticles as an itraconazole vehicle for brain targeting[J]. Int J Pharm, 2020, 575: 119002.
[8] Li Y, Ren MH, Wang JJ, et al. Progress in borneol intervention for ischemic stroke: a systematic review[J]. Front Pharmacol, 2021, 12: 606682.
[9] Wang JY, Dong XY, Yu ZW, et al. Borneol inhibits CD4+T cells proliferation by down-regulating miR-26a and miR-142-3p to attenuate asthma[J]. Int Immunopharmacol, 2021, 90: 107223.
[10] Liu SY, Long Y, Yu S, et al. Borneol in cardio-cerebrovascular diseases: pharmacological actions, mechanisms, and therapeutics[J]. Pharmacol Res, 2021, 169: 105627.
[11] Dong TW, Chen N, Ma X, et al. The protective roles of L-borneolum, D-borneolum and synthetic borneol in cerebral ischaemia via modulation of the neurovascular unit[J]. Biomedecine Pharmacother, 2018, 102: 874-883.
[12] Zhang WW, Wen JX, Jiang YX, et al. L-Borneol ameliorates cerebral ischaemia by downregulating the mitochondrial calcium uniporter-induced apoptosis cascade in pMCAO rats[J]. J Pharm Pharmacol, 2021, 73(2): 272-280.
[13] Xie Q, Li JX, Dong TW, et al. Neuroprotective effects of synthetic borneol and natural borneol based on the neurovascular unit against cerebral ischaemic injury[J]. J Pharm Pharmacol, 2022, 74(2): 236-249.
[14] Zhang YL, Liu SY, Wan JY, et al. Preparation, characterization and in vivo study of borneol-baicalin-liposomes for treatment of cerebral ischemia-reperfusion injury[J]. Int J Nanomedicine, 2020, 15: 5977-5989.
